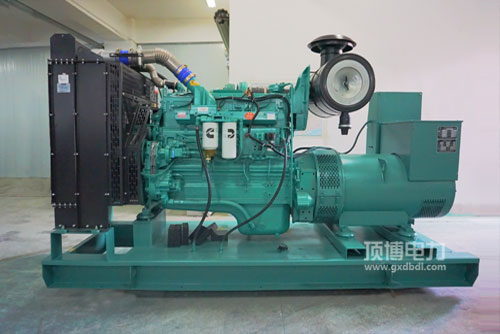

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用打火机汽油经济条件性好: 好的汽油控住系統，独特的STC、ESTC 分级a控住系統，特异设计的缸筒边侧一氧化碳汽缸，各类高压喷射出汽油，有效雾化吸入，一氧化碳丙烷燃烧有效。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯电站用发起机瞬态功能优异的: 圆满的发起机大体设计构思，协调康明斯独一无二的EFC设计，把控好精确性好，为了响应用时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用启行为升耗油率高: 整体的定制紧身.外表布局有效，使用稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷型号 QSNT. QSK19. QSK38. QSK50提供中华非发展最后阶段性及美洲Tier2. Tier 3减排政策法规标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件即得性好， 起因素进行及运维维修保养友盒，低成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

瓦数使用范围 Power Range   224-310KW型号规格 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L样貌尺寸规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量管理 Dry Weight   940kg

224-310KW康明斯风能发电用汽车发动因的显著特点：量小， 收缩变高， 防雨百叶的空气加水，适于发动，挪动车载影音电原的常选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发动因参数	可用额定功率(kW)Prime Power	备品热效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
